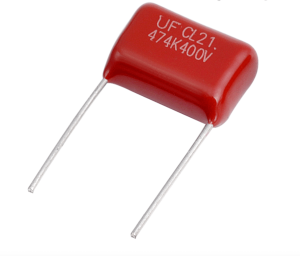

A power film capacitor is a type of electronic component used in electrical circuits for various applications. It is a type of capacitor that uses a thin film of metal as one of its electrodes and a dielectric material as the insulating layer between the electrodes. These capacitors are designed to handle relatively high power levels and provide reliable energy storage and voltage regulation in electronic circuits.
Here are some key features and characteristics of power film capacitors:
Dielectric Material
Power film capacitors typically use a high-quality dielectric material that can withstand high voltage levels and temperature ranges. Common dielectric materials include polypropylene, polyester, or other specialized materials depending on the application requirements.
Metal Film Electrodes
Thin metal films are used as the capacitor’s electrodes, which are deposited onto the dielectric material. These metal films provide a large surface area for energy storage and are capable of handling high power levels.
High Voltage Ratings
Power film capacitors are designed to handle high voltage levels, making them suitable for applications where voltage regulation and energy storage are critical.
Low ESR and ESL
Power film capacitors typically have low Equivalent Series Resistance (ESR) and Equivalent Series Inductance (ESL), which means they have good high-frequency characteristics and can effectively filter out noise and ripple in power circuits.
High Reliability
These capacitors are known for their high reliability and long operational life, making them suitable for industrial, automotive, and other demanding applications.
Wide Temperature Range
Power film capacitors are often capable of operating over a wide temperature range, which makes them suitable for use in extreme environmental conditions.
Applications
Power film capacitors find applications in various fields, including power electronics, motor drives, renewable energy systems (such as inverters for solar and wind power), pulse power applications, and more.
It’s important to note that power film capacitors are just one category of capacitors, and the choice of capacitor type depends on the specific requirements of the circuit or system in which they are used. Different types of capacitors, such as electrolytic capacitors, ceramic capacitors, and tantalum capacitors, have their own characteristics and are selected based on factors like capacitance value, voltage rating, and frequency response.
