Tantalum capacitors are a type of electrolytic capacitor known for their high capacitance per volume ratio and stable electrical properties. They are often used in various electronic circuits, especially in applications where size and reliability are important factors. Here’s how you can identify a tantalum capacitor.
Color and Appearance

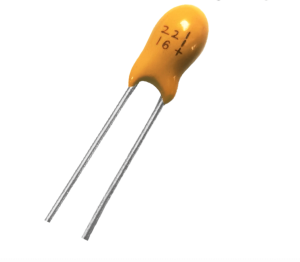

Tantalum capacitors are typically small and cylindrical in shape. They often have a distinctive color, which is usually dark gray, black, or beige. The darker colors are more common, but the exact color can vary depending on the manufacturer and series.
Markings
Tantalum capacitors usually have markings printed on their body that indicate the manufacturer’s logo, part number, capacitance value, voltage rating, and sometimes the polarity. These markings are often white or yellow and are printed directly on the capacitor’s surface.
Polarity Marking
Tantalum capacitors are polarized components, which means they have a positive and negative terminal. The positive terminal is usually marked with a ‘+’ sign, and the negative terminal is indicated by a ‘-‘ sign or a bar next to the polarity marking.
Size
Tantalum capacitors come in various sizes, ranging from very small surface-mount components to larger through-hole versions. Their small size makes them popular in compact electronic devices.
Capacitance Value
The capacitance value of a tantalum capacitor is often marked in microfarads (µF) or picofarads (pF) directly on the capacitor. It’s important to note that tantalum capacitors have relatively high capacitance values compared to other types of capacitors.
Voltage Rating
Tantalum capacitors also have a voltage rating marked on them. This indicates the maximum voltage the capacitor can handle before it may become damaged.
Symbols
Some tantalum capacitors might include symbols that represent its specifications, such as the µF symbol for microfarads and the V symbol for voltage.
Remember that identifying tantalum capacitors can vary depending on the manufacturer and specific series. It’s essential to refer to the manufacturer’s datasheet or guidelines to ensure accurate identification and proper usage in your electronic circuits. Also, be cautious about handling tantalum capacitors, as they are sensitive to voltage spikes and can be damaged if not handled properly.
